UP Inline Atomizer CO2 Diffuser For 16/22mm Hose

4.7 [29 Reviews]
£36.99
UP Inline Atomizer CO2 Diffuser - for 16/22mm Hose



Key Facts

  • Suitable for 16mm/22mm tubing (16mm internal / 22mm external). Click here for tubing size advice
  • For aquariums up to 500L.
  • Creates a mist of very fine bubbles.
  • Excellent diffusion rates due to high surface area of small bubbles.
  • Bubbles are in the flow of water as it enters the aquarium, so remain in suspension in the water for longer.
  • Diffuser is located outside the aquarium which allows for easy maintenance.
  • No equipment in the aquarium itself.
  • Choose the size for your filter tubing.
  • Requires 2 bar / 30 PSI pressure to function (provided by all CO2 Supermarket regulators).


Description

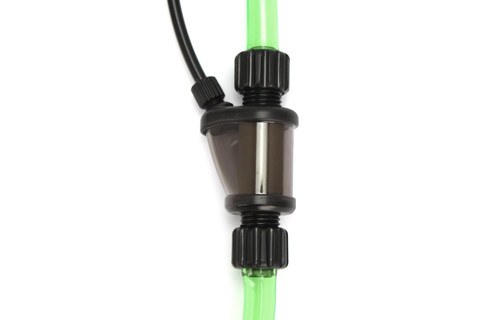

The inline CO2 Atomizer is arguably the most well known product used for CO2 diffusion, and is a firm favourite with planted aquarium specialists around the world. Designed for use with various filter size tubing, this CO2 diffuser sits inline between your filter and the filter outlet, ensuring that the CO2 has as much contact time with the water as possible. As a result, this atomizer dissolves CO2 very efficiently, and provides a stream of very tiny bubbles which exit directly out of your filter outlet. Furthermore, because it is kept outside the aquarium, maintenance is a very easy.

To use this CO2 atomizer, simply connect it, in-line, to your external filter outlet pipe and tighten the nuts. Connect your CO2 regulator to the atomizers CO2 input with air hose tubing and tighten the safety nut. The tiny bubbles that the atomizer produces will then spread evenly around the whole tank, ensuring a uniform spread of CO2.

Instructions

  • Inline atomizers are to be installed on the return / outflow tubing from a filter as the water is reintroduced to the aquarium.
  • Cut or replace your filter tubing with PVC tubing.
  • Push tubing on to each end of the diffuser.
  • Screw the retaining nuts back over the tubing to hold in place.
  • Unscrew the small nut on the CO2 inlet.
  • Feed CO2 tubing through the nut and onto the CO2 inlet.
  • Tighten the nut onto the CO2 inlet to secure the tubing.
  • Turn CO2 on, allow pressure to build within the diffser.
  • Adjust dosing / bubble rate accordingly.


Customer Reviews

Average Rating
4.7
  • T
    Trevor C.
    5

    18th Nov 2024

    Easy to install on my 16/22mm hose (swapped to use PVC tubing which gives a better fit), and the diffusion is top-notch Easy to install on my 16/22mm hose (swapped to use PVC tubing which gives a better fit), and the diffusion is top-notch

  • P
    Patrick D.
    5

    3rd Nov 2024

    Easy to install, it took me just a few minutes, and it's working fantasticlly. Just to say though PVC tubing connects better than the rubbed filter tubing Easy to install, it took me just a few minutes, and it's working fantasticlly. Just to say though PVC tubing connects better than the rubbed filter tubing

  • K
    Kev L.
    5

    12th Sep 2024

    Had a problem with a leak within the capsule itself (Manufacturing Fault) Two emails between me and Martin an alternative product was recommended winging its way to me now. Spent a lot of money with this company over the past few months can't fault how they do business. Will always use and recommend. Cheers Had a problem with a leak within the capsule itself (Manufacturing Fault) Two emails between me and Martin an alternative product was recommended winging its way to me now. Spent a lot of money with this company over the past few months can't fault how they do business. Will always use and recommend. Cheers

  • R
    Roberto
    5

    8th Apr 2024

    this product is truly fantastic, before watering it I had an ADA diffuser with which I delivered 7 bubbles per second to have a concentration of 21 mg/litre, the C02 bubbles were very large and many dispersed upwards, replaced with this fantastic atomizer, everything has changed wonderfully for the better, with only 4 bubbles per second I have the same result of 21 mg/liter of C02 concentration, very read more... this product is truly fantastic, before watering it I had an ADA diffuser with which I delivered 7 bubbles per second to have a concentration of 21 mg/litre, the C02 bubbles were very large and many dispersed upwards, replaced with this fantastic atomizer, everything has changed wonderfully for the better, with only 4 bubbles per second I have the same result of 21 mg/liter of C02 concentration, very small bubbles "a beautiful fog that is distributed in my 225 liters" thanks to the invaluable advice of the team I managed to install everything!! sincere congratulations!! highly recommended

  • S
    Steve
    5

    24th Dec 2023

    Fast delivery.installed easily. Gives a fine mist from outlet pipe. Reduced bubble count for now But very happy with performance Fast delivery.installed easily. Gives a fine mist from outlet pipe. Reduced bubble count for now But very happy with performance

  • F
    François T.
    5

    16th Jul 2022

    Im verry happy whit it Im verry happy whit it

  • D
    Danny P.
    5

    12th Jul 2022

    Took a loooong time to arrive to Israel, but otherwise everything perfect and diffuser works nicely :) Took a loooong time to arrive to Israel, but otherwise everything perfect and diffuser works nicely :)

  • B
    Benjamin J.
    5

    2nd Jul 2021

    Very efficient diffuser, dropped my bubble count from 7bps using a Jbl Taifun to less than 3bps. 5 minute installation, and no fuss operation. Very efficient diffuser, dropped my bubble count from 7bps using a Jbl Taifun to less than 3bps. 5 minute installation, and no fuss operation.

  • S
    Steve P.
    5

    18th May 2020

    Really fine Co2 bubbles. Easy to fit. Doing what it is supposed to Really fine Co2 bubbles. Easy to fit. Doing what it is supposed to

  • F
    Fokke B.
    5

    4th Aug 2019

    The first time I have ordered from you, this will certainly not be the last time, very satisfied with the delivery The first time I have ordered from you, this will certainly not be the last time, very satisfied with the delivery
