Quooker Cylinder Refilling Adapter

4.9 [32 Reviews]
£57.99

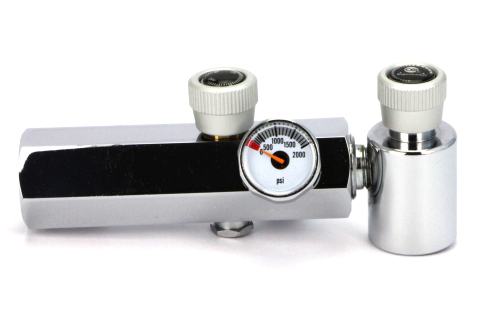

Quooker Cylinder Refilling Adapter



Key Facts

  • Safely refill Quooker cylinders from a larger donor cylinder.
  • Connect to DIN 477 / W21.8 / BS 341 No. 8 or CGA 320 donor/parent cylinders.
  • Refill Quooker cylinders used in UK / USA / Europe (Rest of World), or in Australia / New Zealand.
  • Works on *all* types of Quooker cylinder valve, including the 'booby-trapped' model which supposedly prevent refilling.
  • Quooker isolation feature for safe removal of cylinder.
  • Dump / purge valve for safe and controlled release of gas.
  • Integrated pressure gauge for safety and display of donor cylinder pressure.
  • On / off knob for controlled release.
  • Highest possible quality design and manufacture.


Description

Our Quooker Cylinder Refilling Adapter gives you the freedom and ability to refill your Quooker cylinders at a fraction of the price you pay for exchanging at a retailer. The refilling adapter is used to safely refill Quooker cylinders from larger donor cylinders. It is designed to connect to either a CGA 320 or DIN 477 / W21.8 / BS 341 No. 8 donor cylinder, and then connect either directly to the Quooker cylinder or via a optional high pressure hose as shown in the product photos.

Customer safety is always our primary consideration when designing new products, which is why our refilling adapter includes a pressure gauge to ensure the pressure of the donor cylinder will not exceed the pressure specification of the recipient cylinder, a on/off knob for easy and direct control of the refilling process, and a dump / purge valve to eject the residual gas within the connection between donor and recipient cylinder once refilling is complete.

Instructions

  • Connect the refill adapter to the parent / donor cylinder.
  • Screw the Quooker adapter into the refill adapter.
  • Screw the Quooker cylinder into the adapter.
  • Open the valve on the parent / donor cylinder to release the gas.
  • Turn the shutoff valve to release the gas.
  • Turn the knob of the Quooker valve to inject gas into the cylinder.
  • You will hear gas flowing into the cylinder. Refilling takes roughly 30 seconds.
  • Once refilling is complete, stop the CO2 by turning the shutoff valve.
  • Isolate the Quooker cylinder by turning the adjuster knob.
  • Release the residual gas by opening the dump / purge valve.
  • Remove the Quooker cylinder from the adapter.
  • Repeat the refill process for each Quooker cylinder.
  • Once finished, close the valve on the parent / donor cylinder.
  • Click here to read the full Quooker Cylinder Refill Adapter instructions
