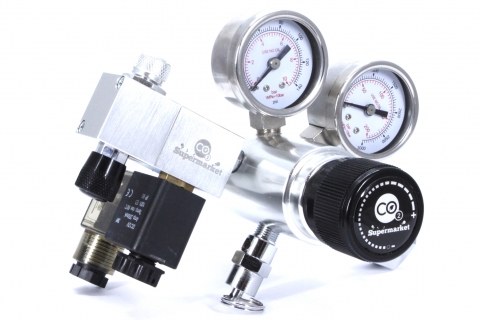

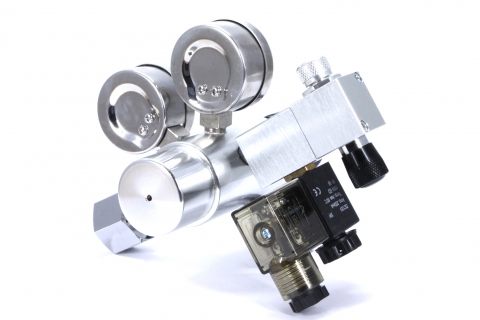

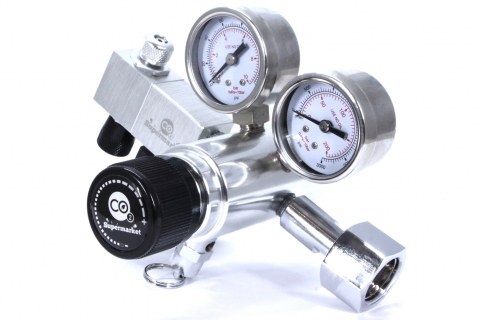

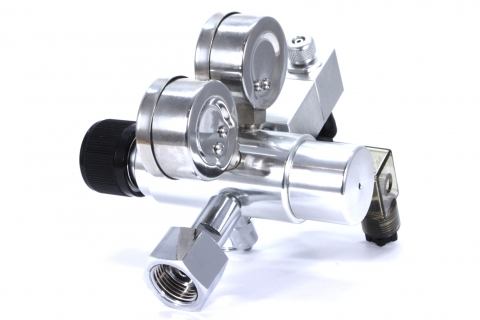

Ultimate-Pro Dual Stage CO2 Regulator
System Customisation
Key Facts
- Highest quality design and manufacture.
- Dual stage mechanism ensures constant output pressure throughout cylinder lifespan.
- Adjustable output pressure 0-8 bar to meet the needs of any aquarium (20L - 3000L).

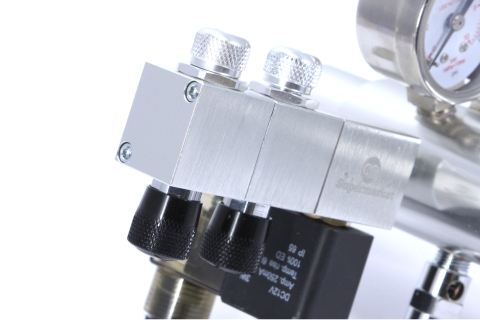

- Quickly and easily add more output manifolds to operate multiple diffusers.
- High performance integrated 12v DC solenoid - safe, low power consumption, cool temperature and guaranteed no noise. Mains transformer included.
- High-precision needle valve for ultimate dosing control.
- Purge valve for safe and easy disconnection from cylinder.
- Dual pressure gauges display input pressure and output working pressure.
- Solenoid magnetic valve allows for CO2 to be switch on/off at defined times.
- Industry standard nut, compatible with DIN 477 / BS 341 No. 8 / JIS m22-14 / W21.8-14 / .860" x 1/14 (covers UK, Europe and Asia).
- Works with any CO2 diffuser.
- Choice of plug and voltage.
Description
The dual stage mechanism ensures the output pressure does not increase, even if input pressure increases or decreases, as can happen during the lifespan of the CO2 cylinder. This gives you peace of mind that the pressure and flow will always remain at the level you have set it to.
The adjustable output pressure ensures the regulator can meet the needs of any aquarium, whether it's a small nano aquarium of just 20L or an aquarium of 3000L that requires multiple diffusers, this regulator can deliver the pressure that's needed.
The regulator comes with a high performance advanced 12v DC solenoid valve fitted as standard. It guarantees safe operation, low power consumption, cool operating temperature and eliminates the possibility of any buzzing sound. The addition of the solenoid enables the regulator to be connected to a timer plug or pH controller so that the dosing of CO2 can be controlled. This enables the flow of CO2 to be shut off when the aquarium lights are not on and the plants aren't photosynthesising and do not benefit from the addition of CO2.
A high-precision needle valve is fitted as standard, which provides a very high level of accuracy of CO2 dosing. Dosing can be achieved as low as 1 bubble / 10 seconds, to a constant flow of CO2, enabling it to function for small nano aquariums of 20L to large aquariums of several thousand litres.
Instructions
- Tighten the regulator to your CO2 cylinder using a spanner or wrench. Do not use your hands to tighten, it will not create sufficient seal and be likely to leak.
- Set the output pressure to minimum by turning the pressure adjuster knob fully anticlockwise.
- Close the needle valve by turning fully clockwise.
- Plug the solenoid into a mains socket and switch on.
- Open the flow of gas from your CO2 cylinder.
- The cylinder presure gauge will now indicate the pressure of the cylinder. Turn the pressure adjuster clockwise until it reads 40PSI, which is a good starting point for a single diffuser installation.
- With the bubble counter attached, turn the needle valve anticlockwise to achieve the bubble rate desired. 1 bubble / second is suitable for a 150L aquarium - adjust your dosing in accordance to this, i.e. 2 bubble / second for 300L aquarium.
- Click here to read the full dual stage regulator setup guide
